SQUARE TILEDRAIN 150mm POLISHED SS FOR USE WITH ST90-70B

SKU: MCA-UK | Category: .

Product Description

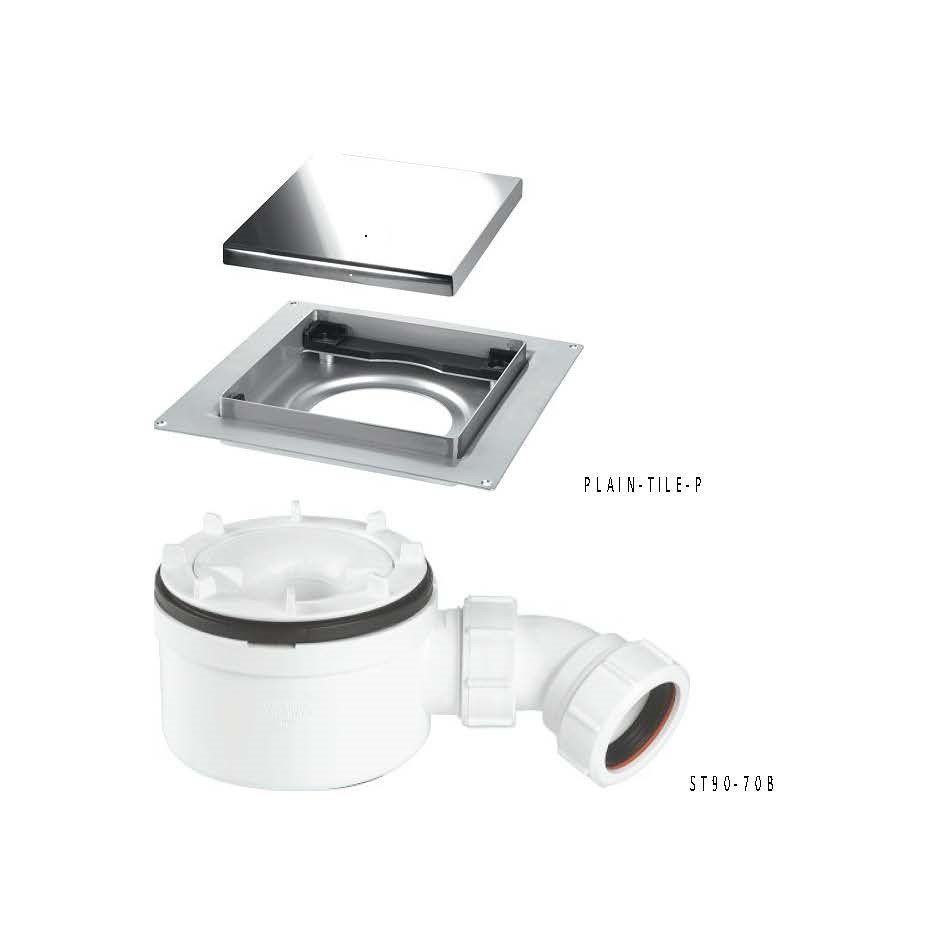

TILE-PLAIN-P  –   SQUARE TILEDRAIN 150mm POLISHED SS FOR USE WITH ST90-70B

150mm Square Stainless Steel Tile Drain for use with 50mm Water Seal trap body

  • Available in Brushed or Polished Stainless Steel in 5 designs
  • Tiles suitable for use with ST90-70B, ST90-HP2B or ST90-HPB Shower Traps
  • Grade 304 Stainless Steel
  • Tiles reversible to accommodate tiles up to 8mm
  • Frame height adjustable to suit tiles up to 16mm
  • Supplied with adjustable height support legs for concrete floor installations





ST90 – 70B  –  TRAP BODY FOR TILE DRAIN-1½” Outlet

50mm Water Seal Trap Body with 1½” Multifit Outlet

  • 50mm Water Seal
  • Supplied with 135° Bend – BSP coupling nut x 1½” Multifit
  • Flow rate of 34 l/min when tested under a constant 15mm head of water in accordance with clause 5 of BS EN 274-2:2002
  • Height of trap body is 70mm
  • Manufactured in Polypropylene.
